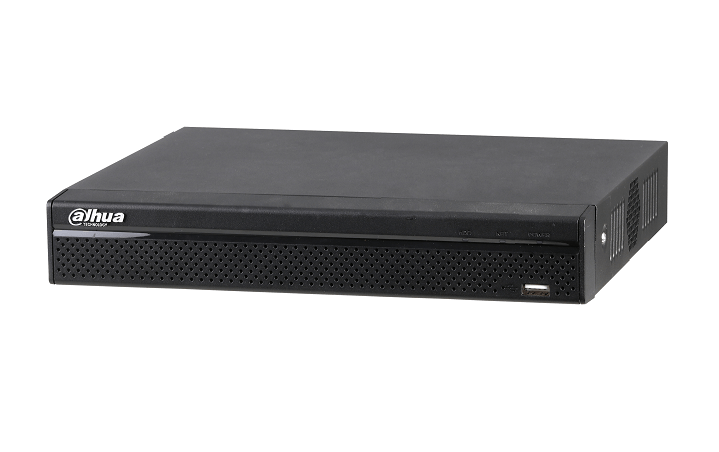

Dahua XVR4116HS - Enregistreur vidéo DVR Dahua 16 Canaux 5en1 HDCVI/AHD/IP/ANALOGIQUE /TVI jusqu'à 1080N. Audio Dahua.

Enregistreur vidéo DVR Dahua 16 Canaux 5en1 HDCVI/AHD/IP/ANALOGIQUE /TVI jusqu

Prix Normal : 2 220,00 Dh TTC

Votre Prix :1 680,00 Dh TTC

Hors Taxe : 1 400,00 Dh HT

Economie : 540,00 Dh - 24%

Enregistreur vidéo DVR Dahua 16 Canaux 5en1 HDCVI/AHD/IP/ANALOGIQUE /TVI jusqu'à 1080N. Audio Dahua.

Disponibilité : En Stock
Evaluation :
  • Enregistreur vidéo DVR Dahua 16 Canaux 5en1 HDCVI/AHD/IP/ANALOGIQUE /TVI jusqu

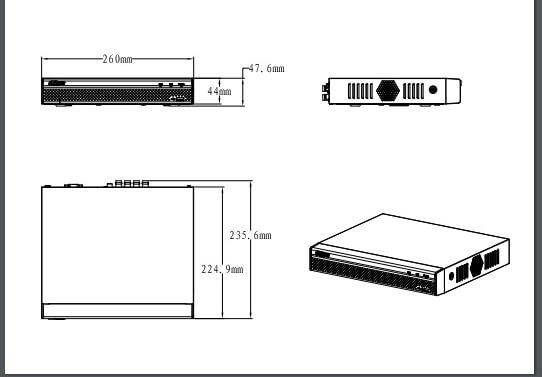

  • /images/Products/DAHUA-HD-DVR-Dimension_47e99b4c-b3aa-4741-9959-3b14493bb451.jpg

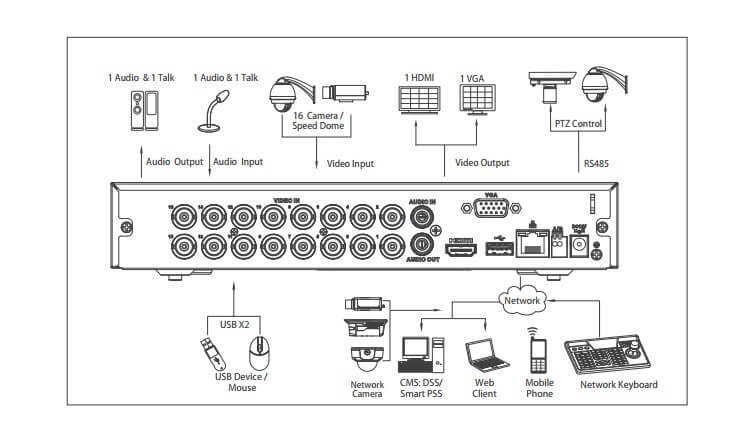

  • /images/Products/Rear-Panel_58501100-0479-41ef-9240-5742f68a750d.jpg
DHI-XVR-4116HS Specifications
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Interface1 HDMI ,1 VGA
Resolution1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display4CH: 1/4/6

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm inputN/A
Relay OutputN/A
Tracking Trigger EventN/A
Playback and Backup
Playback4CH: 1/4

8CH: 1/4/9

16CH: 1/4/9/16

Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Internal HDD1 SATA Port, up to 6TB capacity
HDD ModeSingle
Auxiliary Interface
Front CoverN/A
USB2 USB Ports (2 USB 2.0)
RS4851 Port, for PTZ Control
Third-party Support
Third-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Audio and Video
HDCVI Camera Input4/8/16 Channel
IP Camera Input4+1: each channel up to 2MP

8+2/16+2:each channel up to 5MP

Audio In/Out1/1
Two-way TalkReuse audio in/out, RCA
Resolution1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record RateMain Stream:

4CH:1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

8/16CH:1080N(12fps)/720P(15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

Sub steram:D1/CIF/QCIF(1~25/30fps)

Bit Rate1Kbps ~ 6144Kbps Per Channel
Record ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Interface1 RJ-45 Port (100M)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.4.1, CGI Conformant
Power SupplyDC12V/2A
Power Consumption<10W (Without HDD)
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH
DimensionsCompact 1U, 260×236×48mm(10.2″×9.3″×1.9″)
Net Weight0.75kg ( 1.7lb) (without HDD)
Gross Weight1.5kg (3.3lb)
InstallationDesktop installation
CertificationsFCC: Coming soon
UL: Coming soon
