Pack 4 - IPBX Asterisk a 2 Lignes avec 4 Postes IP

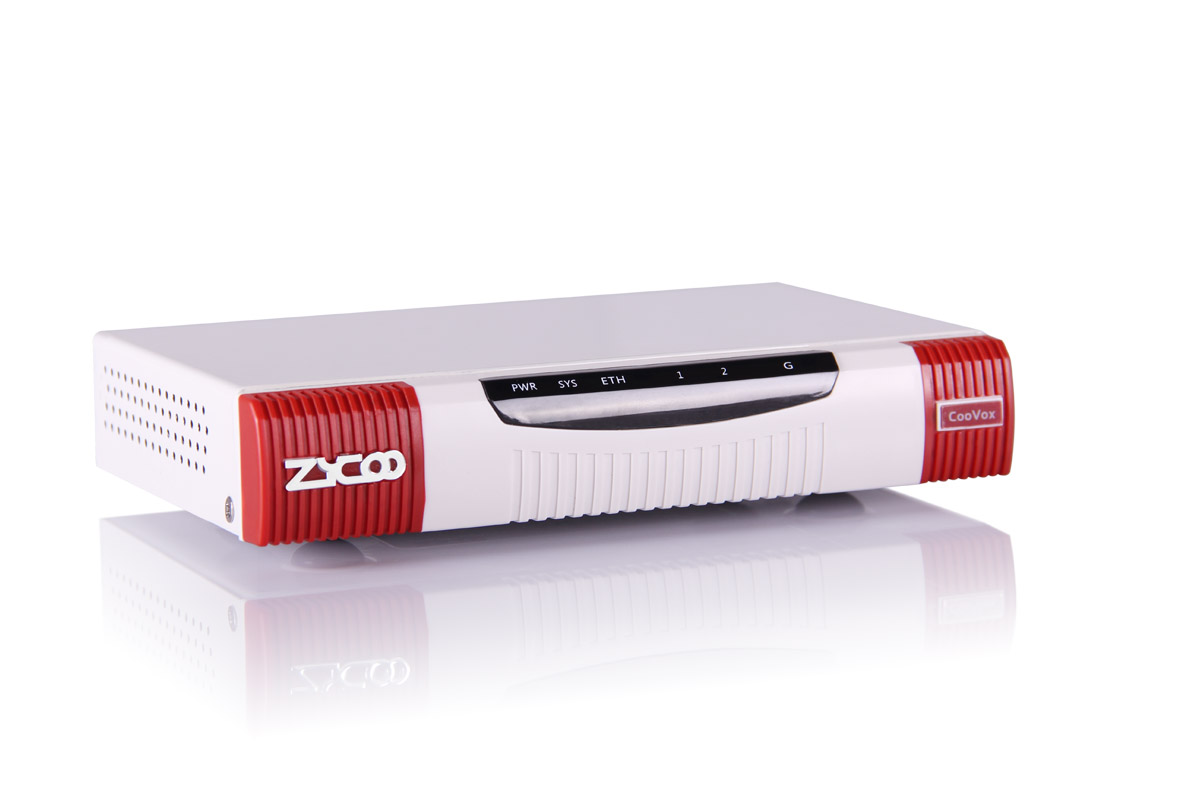

Chargement... Fiche Technique CooVox-U20 V2
Description
CooVox-U20 Version 2 IP Phone system is the second generation of Mini IP Phone system released from ZYCOO, meanwhile it's the first Mobile IP Phone system with the ability to use the GSM or UMTS (3G) module to connect to the mobile network for data transport.CooVox-U20 is a next-generation smart IP PBX system designed and optimized for today's business telecommunication needs.CooVox-U20 is an affordable, scalable, interoperable, secure and reliable solution which not only provides traditional PBX functions such as automated attendant and voicemail, but also many advanced features including remote extensions, remote office connection, conference bridge, call recording, call detail records (CDR), automatic call distribution (ACD), unified messaging (voice mail to email), and many more features.
SPECIFICATIONS
Up to 15 Concurrent Calls
Up to 20 Conferences
Up to 30 IP Phone Registers/Extensions
Recording: 36,000 mins (.gsm); 4,000 mins (.wav)
Voicemail: 36,000 mins (.gsm); 4,000 mins (.wav)
Codecs & Protocols
Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/ G.726/G.729/GSM/SPEEX
Video Codecs: H.261/H.263/H.263+/H.264
Protocols: SIP (RFC3261)/IAX2
DTMF: RFC2833/SIP INFO/In-Band
Network Features
DDNS Client
DHCP Server
IPv4/IPv6/IEEE802.1Q
IP Assignment (PPPoE/DHCP/Static)
SNMP v1/v2
TR069
Static Route Table
Trouble Shooting (Ping/Traceroute)
VPN Client (N2N/L2TP/PPTP/OpenVPN/IPSec)
VPN Server (PPTP/L2TP/OpenVPN/IPSec)
Security Features
Refuse SIP Register DoS
Refuse Abort Invite DoS
Refuse SSH Login DoS
Logs
PBX Log
Web Access Log
PBX Debug Log

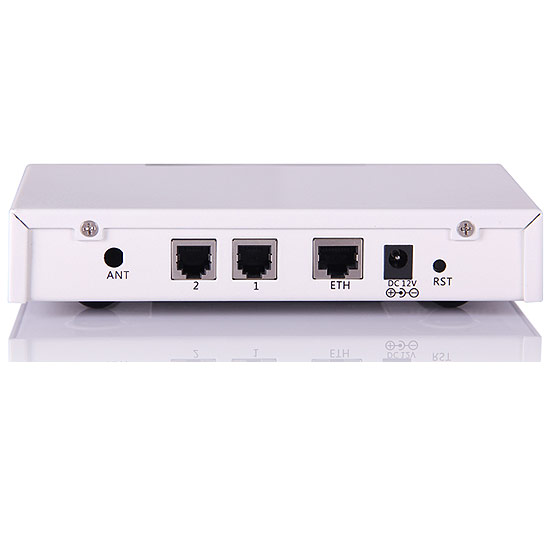

Interface
1 Reset Button
1 Power Interface
1 Ethernet Interface
2 Analog Ports (FXO/FXS)
1 USB 2.0 Interface for Storage
1 Console Port
Hardware
Processor: DualCore A7(1GHz)
SDRAM: DDR3 512MB
Storage: 8GB SD Card (Industry Standard)
Power Supply: Input AC 100~240V, 50/60Hz;
Output DC 12V/1A
System
Asterisk 1.8

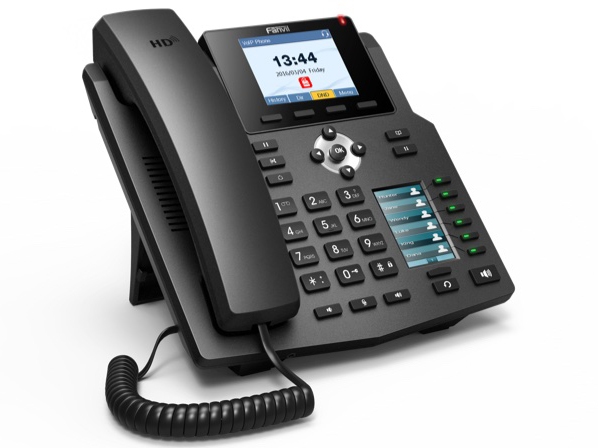

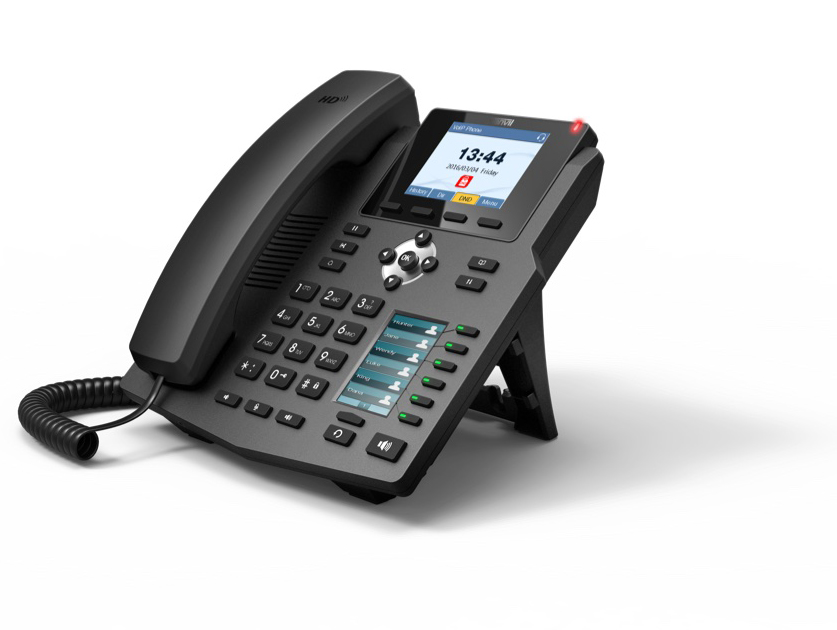

Fiche Technique Fanvil X4
Description du Produit
Téléphone IP X4SG avec Couleur LCD 2.8" avec une clé intelligente DSS-cartographie Couleur LCD pour le marché de l'entreprise. X4 est livré avec des fonctionnalités d'entreprise complets et l'interopérabilité avec les principales plates-formes, comme Asterisk, Broadsoft, 3CX, Elastix, etc.
Main Features
• Call out / answer / reject
• Mute / Unmute (microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (depending on server)
• Redial/Auto-Redial
• Do-Not-Disturb (per line / per phone)
• Auto-Answering (per line)
• Voice Message (on server)
• Local 3-way Conference
• Hot Line
• Hot-Desking
Specifications
Generic
• 2.8 inch color-screen
• 4 SIP Lines
• HD voice
• Support EHS Headphone
• 6 Programmable DSS keys, dynamic display ，support up to 30 programmable keys custom configuration
• POE Enabled
• 2 Color LCDs (Main + DSS)
• Handset(HS) / Hands-free(HF) / Headphone(HP) mode
• Intelligent DSS Keys
• Desktop / Wall-mount installation
• Optional External Power Supply
• Economical and Environmental friendly package
• Industrial Standard Certifications: CE/FCC
Call Features
• Call out / answer / reject
• Mute / Unmute (microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (depending on server)
• Redial/Auto-Redial
• Do-Not-Disturb (per line / per phone)
• Auto-Answering (per line)
• Voice Message (on server)
• Local 3-way Conference
• Hot Line
• Hot-Desking
Phone Features
• Phonebook (500 entries)
• Remote Phonebook (XML/LDAP)
• Call log (300 entries, in/out/missed)
• Black/White List Call Filtering
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Action URL / Active URI
Audio
• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• Wideband ADC/DAC 16KHz Sampling
• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
• Wideband CODEC: G.722
• Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Networking
• Physical: 10/100Mbps(X4SP), 10/100/ optionel: 1000Mbps(X4SG) Ethernet, dual bridged port for PC bypass
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• QoS
Protocols
• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• 802.1x
• L2TP (Basic Unencrypted)
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR069
RFCs: 354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976/3261/3262/3263/3264/3265/3268/3311/3489/3711/4346/4566/5630/5865
Deployment & Maintenance
• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/
• DHCP OPT66/SIP PNP/TR069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog
Physical Specifications
• Main LCD x1: 128x64 dot-matrix with backlit
• DSS Key-mapping LCD x1: 64x192 dot-matrix
• Keypad: 38 keys, including:
• 4 Soft-keys
• 3 Function keys
• 4+1 Navigation keys + OK
• 12 Standard Phone Digits keys
• 3 Volume Control keys, Up/Down/Mute(Microphone)
• 1 Hands-free key
• 8 DSS Keys with tri-color LED
• 1 Page-Switch (PS) key with tri-color LED
• 1 Page-Jump/Configuration (PJC) key
• HD Hands-free Speaker (0 ~ 7KHz) x1
• HD Hands-free Speaker (0 ~ 7KHz) x1
• HD Hands-free Microphone (0 ~ 7KHz) x1
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• RJ9 Phone Jacket x2: Handset x1, Headphone x1
• RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled),
• PC x1 (Bridged to Network)
• Main Chipset: Broadcom
• DC Power Input: 5V/1A
• Power Consumption: (X4) Idle – ~ 1.1W, Peak – ~1.8W
• (X4G) Idle – ~ 1.55W, Peak – ~2.25W
• Working Temperature: 0 ~ 40℃
• Working Humidity: 10 ~ 65%

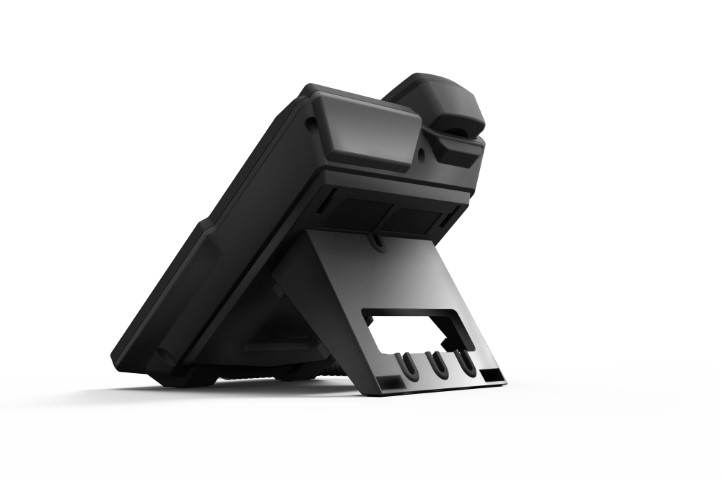

• Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
• Color: Black
• Package Dimensions: 285x270x65mm (W x H x L)

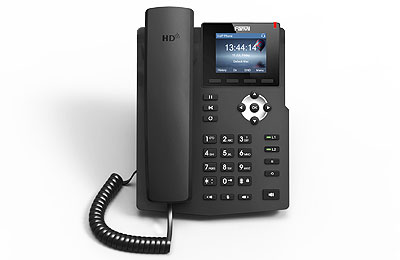

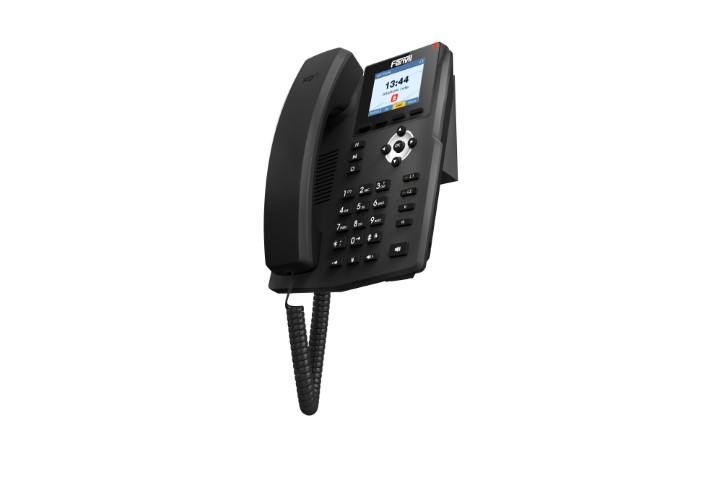

Fiche Technique Fanvil X3SP
Description du Produit
The Fanvil X3SP IP Phone is an industrial masterpiece, offering superior user experience and simplicity for home and office users with elegant appearance and intelligent software.
Main Features
Call out/answer/reject
Mute / Unmute (microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (depending on server)
Redial
Do-Not-Disturb (per line / per phone)
Auto-Answering (per line)
Voice Message (on server)
Local 3-way Conference
Hot Line
Specifications
• 2.4 inch color-screen
• 2 SIP Lines
• HD Voice
• Support EHS Headphone
•Compatible with major platforms: Broadsoft, 3CX, Asterisk, Elastix, etc
User Friendly Graphical Menu with Help description
POE Enabled (X3SP)
Handset (HS) / Hands-free (HF) / Headphone (HP) mode
Desktop / Wall-mount installation
External Power Supply (X3S)
Economical and Environmental friendly package
Industrial Standard Certifications: CE/FCC
Call Features
Call out / answer / reject
Mute / Unmute (microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (depending on server)
Redial
Do-Not-Disturb (per line / per phone)
Auto-Answering (per line)
Voice Message (on server)
Local 3-way Conference
Hot Line
Phone Features
Initialization Configuration Wizard
Up to 5 User Accounts / Profiles with individual phonebook/call log/configurations/PIN
Phone Accessibility Control by User PIN
Intelligent Phonebook (up to 500 entries total)
Cloud Phonebook (XML)
Intelligent Contact Number Matching / Filtering
Call log (300 entries total, in/out/missed)
Call Connection Quality (QoS) Measurement and Indication
Voice Message Waiting Indication (VMWI)
Network Time Synchronization
Audio
HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
Wideband ADC/DAC 16KHz Sampling
Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
Wideband CODEC: G.722
Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO Networking
Physical: 10/100 ou x3SG 1000 Mbps Ethernet, dual bridged port for PC bypass
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP (Basic Unencrypted) / OpenVPN
VLAN
QoS
Protocols
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
PPPoE
802.1x
L2TP (Basic Unencrypted)
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR069
RFCs:
354/1321/1350/1769/1889/1890/2131/2132/2616/ 2617/2661/2833/2976/3261/3262/3263/3264/3265/ 3268/3311/3489/3711/4346/4566/5630/5865
Deployment & Maintenance
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
Web Management Portal
Web-based Packet Dump
Configuration Backup/Restore
Auto/Manual Online Software Upgrade
Syslog
Physical Specifications
LCD x1: 128x48 dot-matrix with backlit
Keypad: 25 keys, including
4 Soft-keys
12 Standard Phone Digits keys
2 Navigation keys (Up/Down)
2 Line keys with tri-color LED
1 Redial / Call Log Key
3 Volume Control keys, Up/Down/Mute(Microphone)
1 Hands-free / Headphone key
HD Hands-free Speaker (0 ~ 7KHz) x1
HD Hands-free Microphone (0 ~ 7KHz) x1
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
RJ9 Phone Jacket x2: Handset x1, Headphone x1
RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled, X3P only), PC x1 (Bridged to Network)
Main Chipset: Broadcom
DC Power Input: 5V/1A
Power Consumption: Idle – ~ 1.1W, Peak – ~ 1.8W
Working Temperature: 0 ~ 40℃
Working Humidity: 10 ~ 65%
Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
Color: Black (K) / White (W) / Red (R) / Blue (B) / Yellow (Y)
Package Dimensions: 275x215x62mm(W x H x L)
Moyenne des revues
-
Tableau Blanc Interactif Tactile au Doigt et au Stylet 79"
8 280,00 Dh TTC
-
1 440,00 Dh TTC
-
600,00 Dh TTC
-
32,40 Dh TTC
-
LECTEUR RFID 125KHZ USB POUR CONTROLE D'ACCES ET POINTAGE
499,00 Dh TTC
-
Tableau Blanc Interactif Tactile au Doigt et au Stylet 82" & 92"
9 480,00 Dh TTC
-
CARTE GRAPHIQUE MSI PCIEX GeForce 610 2GO (N610-2GD3H/LP)
839,00 Dh TTC
-
CARTE GRAPHIQUE MSI 1GO PCIEXP GeForce210 (N210-MD1GD3H/LP)
506,40 Dh TTC
-
HP Rack Airflow Optimizations Kit Location Discovery Kit
959,99 Dh TTC
-
Panneau de brassage 24 ports Cat.6 STP, 1U,noir
1 099,00 Dh TTC
-
DIAMOND PAPIER A4 LASER 80G PREMIUM
48,00 Dh TTC
-
SUPPORTS VIDEOPROJECTEUR PLAFONNIER
1 296,00 Dh TTC
-
Téléphone Filaire de Base (noir)
309,00 Dh TTC
-
996,00 Dh TTC
-
Ecran LED Tactile au Doigt et au Stylet 84 Pouces
106 800,00 Dh TTC
-
Ecran LED Tactile 65 Pouces FULL HD
43 200,00 Dh TTC
-
Support 1 Bras Hub 4 Ports USB 2.0 pour Ecran de 13 à 32"
684,00 Dh TTC
-
Pointeuse Biométrique Professionnelle + Controle D'accés RFID+Code
3 600,00 Dh TTC
-
Controle D'Accés à Empreinte Digitale + Carte RFID
1 920,00 Dh TTC
-
Caméra Action sans Fil Etanche Résolution HD 720P
959,00 Dh TTC
-
Caméra IP POE 2Mp Jour/Nuit HD 2 Mégapixels (1600x1200)
1 909,00 Dh TTC
DDNS Maroc Gratuit DDNS Maroc Gratuit DDNS
Samsung Galaxy S8 et S8 Plus Samsung Maroc Samsung Samsung Galaxy S8 Samsung Galaxy S8 Plus
Optoma Vidéoprojecteur X312 Optoma Maroc Optoma Optoma Vidéoprojecteur X312
Nikon Appareil Photo COOLPIX L840 Nikon Maroc Nikon Nikon L840 Nikon COOLPIX L840
Samsung Galaxy Tab 3 Lite Samsung Maroc Samsung Samsung Galaxy Tab 3 Lite
Lenovo Yoga Tablet 8" Lenovo Maroc Lenovo Lenovo Yoga Tablet Lenovo B6000
Ordinateur Tactile HP Tout-en-un HP Maroc HP ordinateur tactile HP L0V52EA Ordinateur Tactile HP Tout-en-un
Canon Reflex EOS 1200D Canon maroc Canon Reflex EOS 1200D
Caméra IP Wifi étanche Foscam maroc Foscam FI8904W
INFOSEC E2 LCD-2000 Infosec Maroc Infosec Infosec E2 LCD-2000
